Spray and evaporative technologies intelligently combined
Initial staged output is followed by fully modulating output giving very close humidity control of up to +/-2%RH

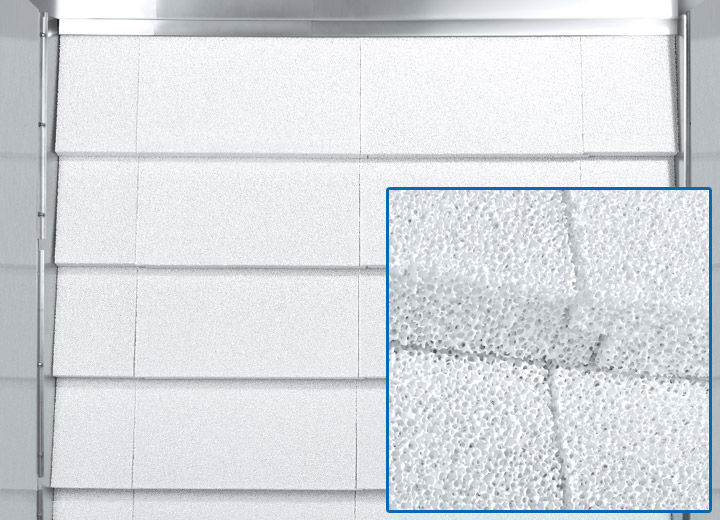

Moisture is absorbed from the porous surface of the ceramic droplet evaporator as air passes through, increasing humidification efficiency

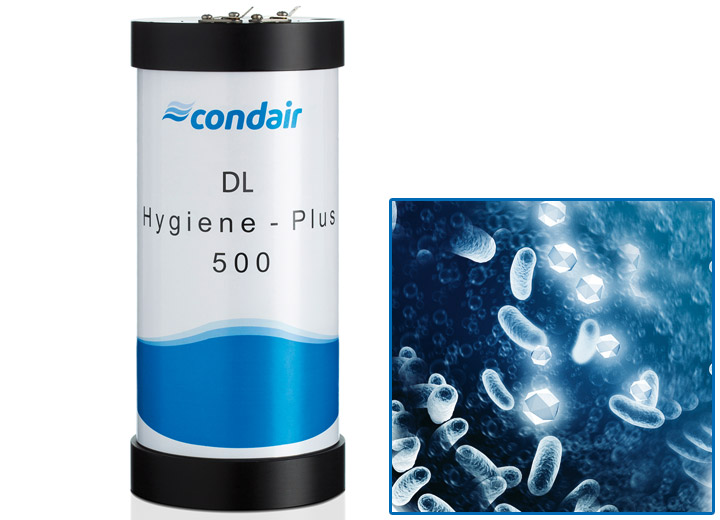

The Condair DL incorporates many hygiene features including the patented Hygiene Plus silver ionisation. Silver has a residual sterilising effect and inhibits microbial growth throughout the humidifier.

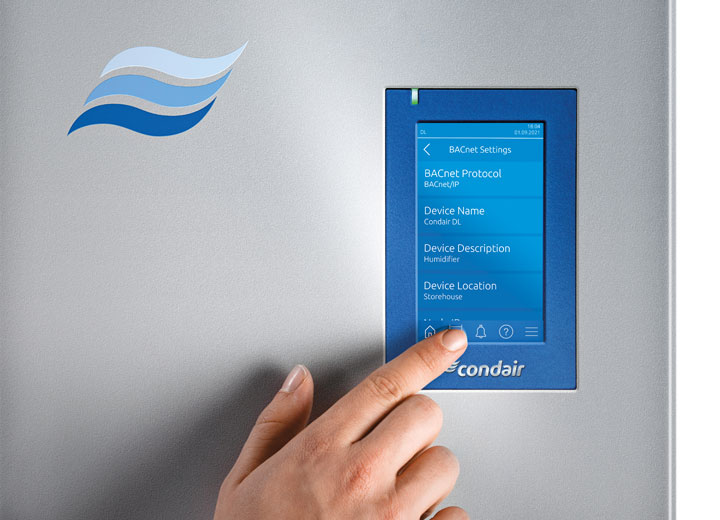

The Condair DL incorporates the latest touch screen control panel, providing intuitive operation and extensive reporting information
Combining spray and evaporative technologies provides a very short absorption distance of 600-900mm, reducing the overall section length required in the AHU

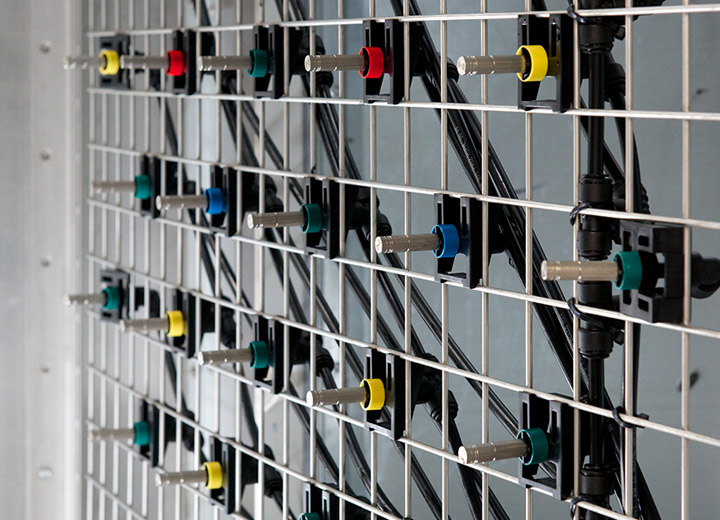

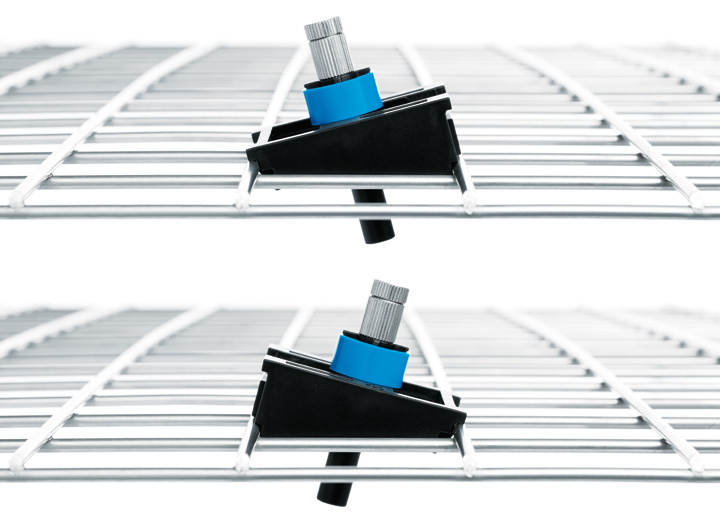

Nozzle heads adjust up to 15° for even humidity across the duct and to minimise wetting on walls, floor and ceiling

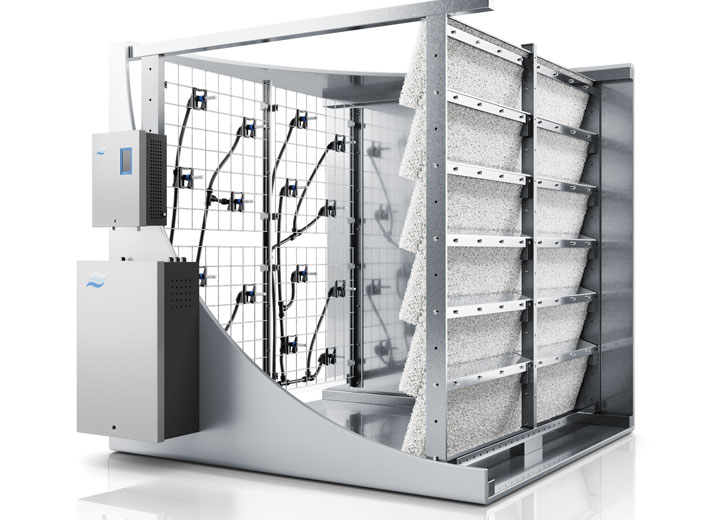

The Condair DL combines spray and evaporative technologies to provide close control, hygienic in-duct adiabatic humidification with low operating costs.
A grid of nozzles releases a fine spray into the air stream towards a ceramic droplet evaporator. What moisture isn't immediately absorbed by the air precipitates onto this ceramic evaporator. As air flows through its porous surface, more water is absorbed by the air for highly efficient water use and droplet-free humidification.
This efficiency enables the humidifier to provide very close control at up to +/-2%RH, which is a level of control usually only achievable with steam humidification.

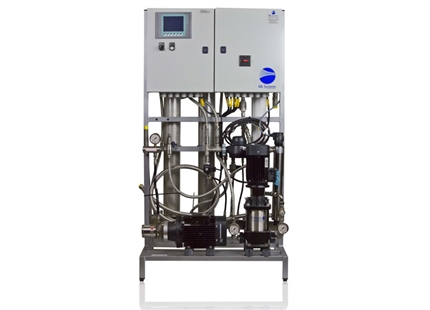

Hygienic operation of the humidifier is assured with use of pure reverse osmosis water, flush and drain cycles, a patented "Hygiene Plus" silver ionisation concept, optional H2O2 disinfection and compressed air drying of the water lines.
Features and benefits
Initial stage control followed by fully modulating output provides very accurate humidity of up to +/-2%RH
Multiple anti-microbial features for extremely hygienic operation
Independently certified by the SGS Institut Frensenius for hygienic operation
Low energy humidification with the additional benefit of evaporative cooling
